SmartVent system identification

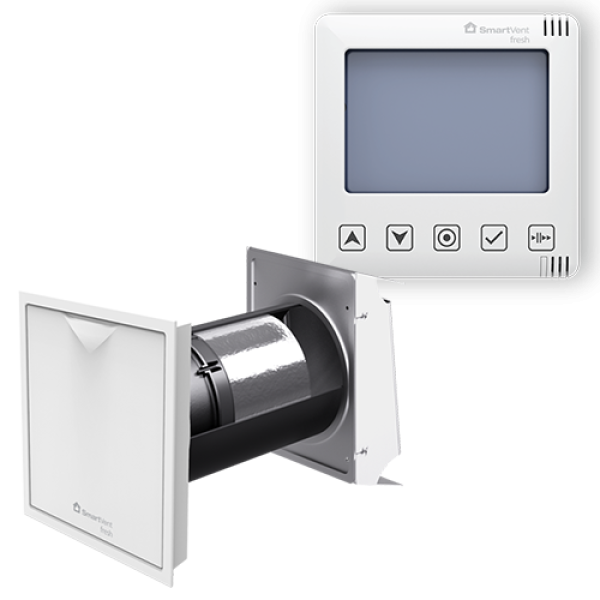

FEBRUARY 2025 – CURRENT

Through-wall system w/ app controls. Optional wall controller.

AUGUST 2024 – CURRENT

COMES IN ECONIQ S, ECONIQ M (Both are core only).

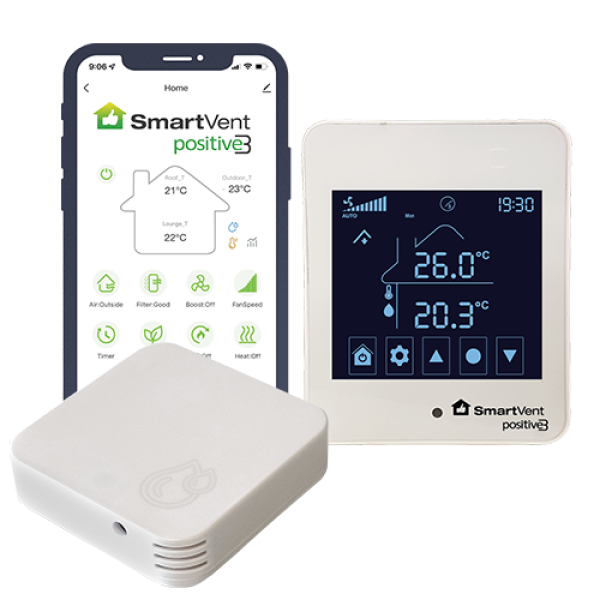

MAY 2024 – CURRENT
Comes in SV02P3, SV04P3, SV06PS KITS

Includes app controls, wall controller, and boxy wireless sensors (pictured).

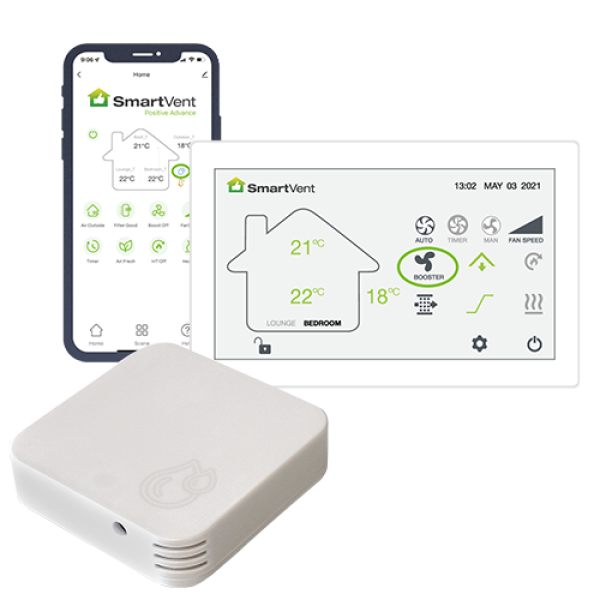

MARCH 2023 – CURRENT
Comes in SV02AD, SV04AD, SVO6AD KITS

Includes tablet controller + app controls. No mounted wall controller. The difference between this system and the Positive Evolve 2 is the sensors. The Positive Evolve 2 features circular wired sensors, wheras the Positive Advance includes square wireless sensors.

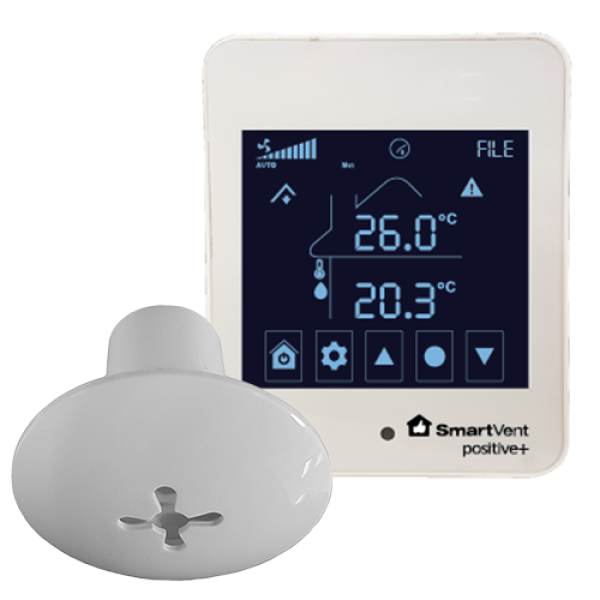

NOVEMBER 2020 – APRIL 2024
Came in SV01P+, SV02P+, SV04P+, SV06P+ KITS

Includes wall controller sensors (pictured). Hardwired in roof cavity ONLY.

NOVEMBER 2020 – CURRENT
Comes in SV01L+, SV02L+, SV04L+, SV06L+

Includes wall controller sensors (pictured). Hardwired in roof cavity ONLY.

SEPTEMBER 2020 – APRIL 2024

Came in SV01L2, SV02L2, SV04L2, SV06L2 KITS

Did not include any sensors.

DECEMBER 2019 – APRIL 2024
Came in SV01P2, SV02P2, SV04P2, SV06P2

The very first batch of these wall controllers did not have Positive2 underneath the SmartVent.

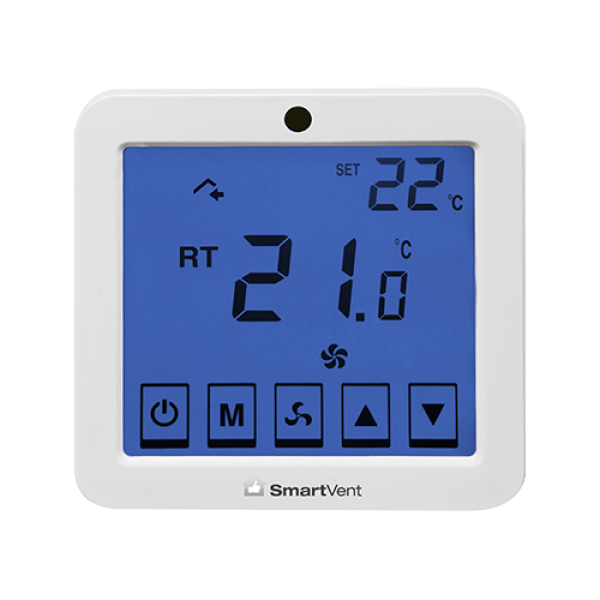

SMARTVENT POSITIVE LITE - MARCH 2019 – SEPTEMBER 2020

Came in SV01L, SVO2L, SVO4L, SV06L.

N.B: This wall controller is for the Lite system. Our standalone Heat Transfer also uses the same wall controller.

AUGUST 2018 – CURRENT
BAL225 & BAL405

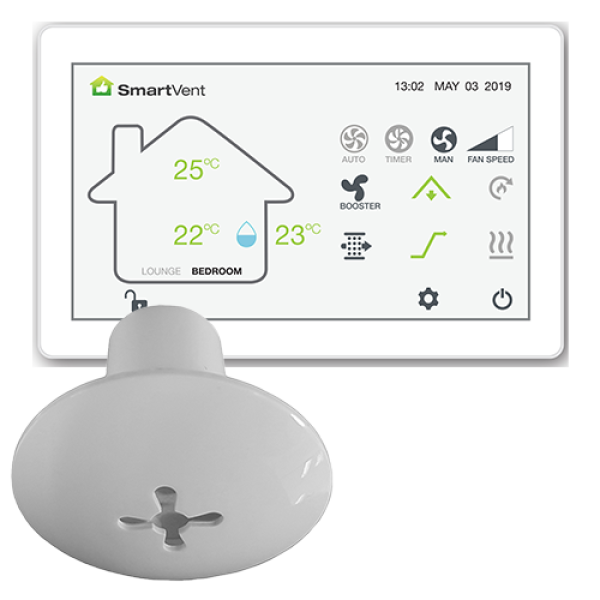

SEPTEMBER 2018 – MARCH 2023
Came in SV02E2, SV04E2, SV06E2 KITS

Includes tablet controller. No mounted wall controller. The difference between this system and the Positive Advance is the sensors. The Positive Evolve 2 features circular wired sensors, wheras the Positive Advance includes square wireless sensors.

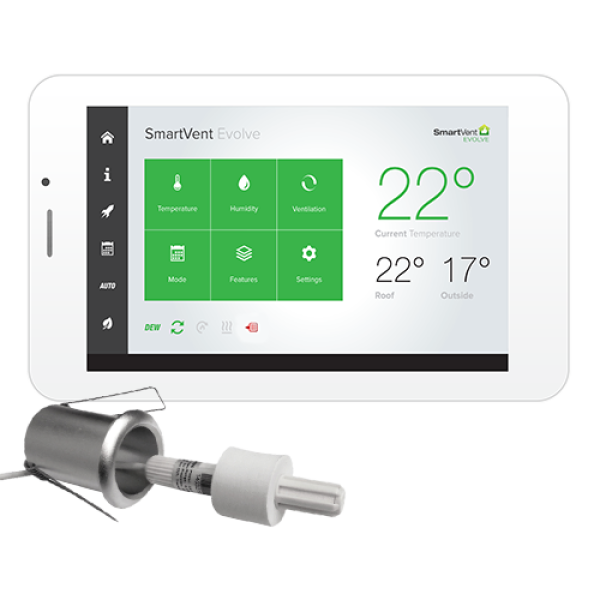

MARCH 2014 – SEPTEMBER 2018
Came in SV02E, SV04E, SV06E KITS

Includes tablet controller. No mounted wall controller. Also includes hardwired sensors (pictured).

MAY 2010 – MARCH 2014

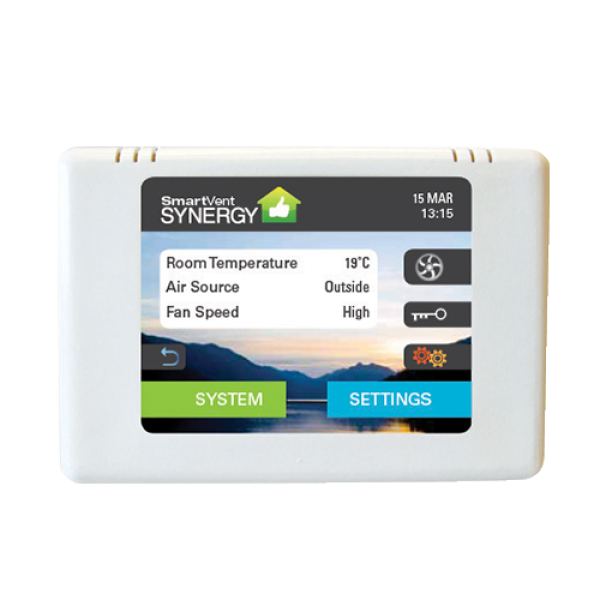

SYNERGY 190(S)/250(S)

PRE MAY 2014
Came in SV01P, SV02P, SV04P, SV06P KITS
Also came in SV01(S)P, SV02(S)P, SV04(S)P, SV06(S)P KITS

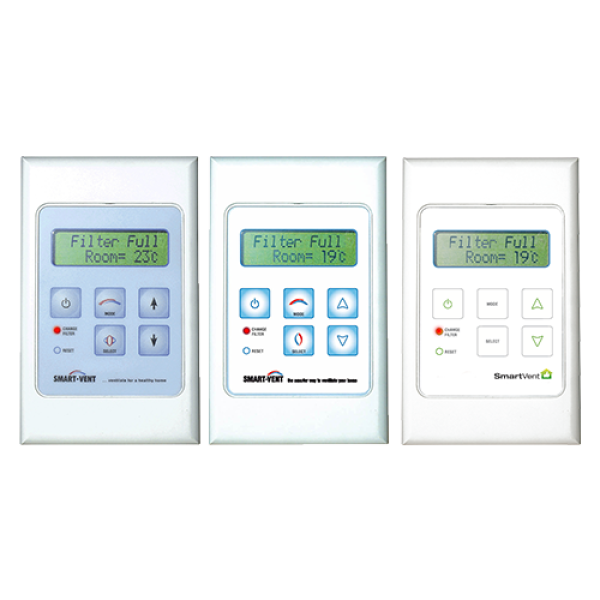

Includes three wall controller variants, with the following versions: V3, V2.09 (Green or blue keypad), V2.07, V2.04, and V2.03. If you are unsure on what version you have, turn the system off and on again. “Smart-Vent Active” or “EcoSmart-Vent Active” will appear then “Software Version 2.XX” will show.

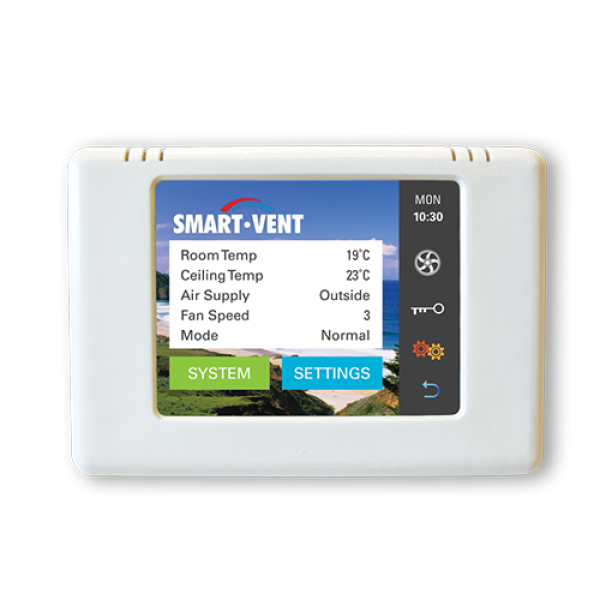

SEPTEMBER 2008 – MARCH 2014
Came in SV01TSC, SV02TSC, SV04TSC, SV06TSC KITS
Also came in SV01(S)TSC, SV02(S)TSC, SV04(S)TSC KITS
