Uniflexplus+ ducting: A compact solution.
Uniflexplus+ is an easy to install semi-rigid ducting system with a small vertical footprint.
The range consists of several sizes of distribution boxes, semi-rigid ducting, and diffusers, for a variety of applications and airflow requirements.
How does it compare to other ducting?

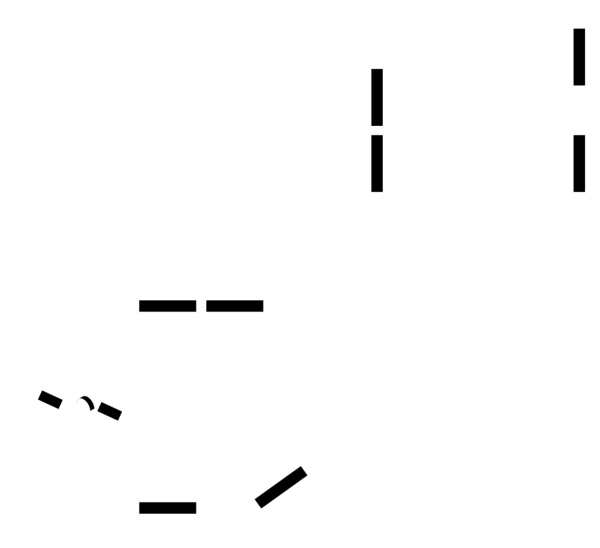

If you need a compact, robust ducting system that is quick and easy to install, few options are better than Uniflexplus+. The system can be built with the following sizes of ducting:
90mm round, = 150mm ducting (when three duct lengths are used).
69mm round, = 125mm ducting (when three duct lengths are used).
52x132mm rectangular, roughly = 100mm ducting.

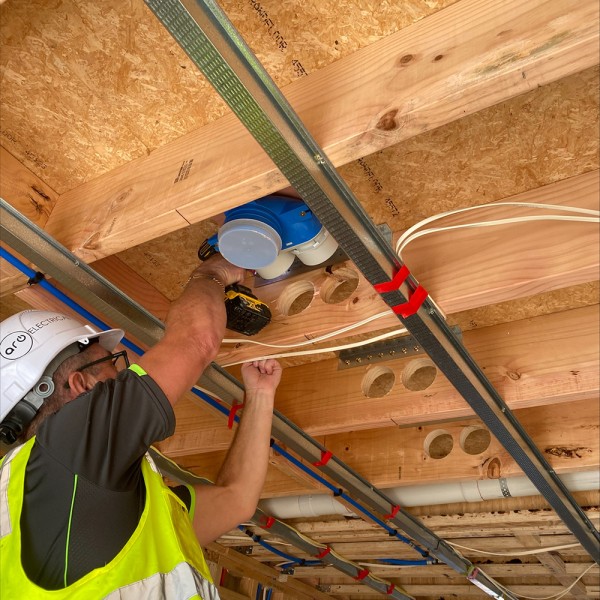

How do you install Uniflexplus+?
Our quick tips:
Thanks to its few components and ‘click’ system, installing Uniflexplus+ is very straightforward. All you need to do is:
1. Fasten distribution boxes and valve collectors (diffuser adaptors)
2. Cut ducts to size (duct knife)
3. Click the ducts in the distribution boxes and collectors
4. Fasten the ducts with the brackets
5. Place the valves (diffusers) and balance the system
Ideal applications:

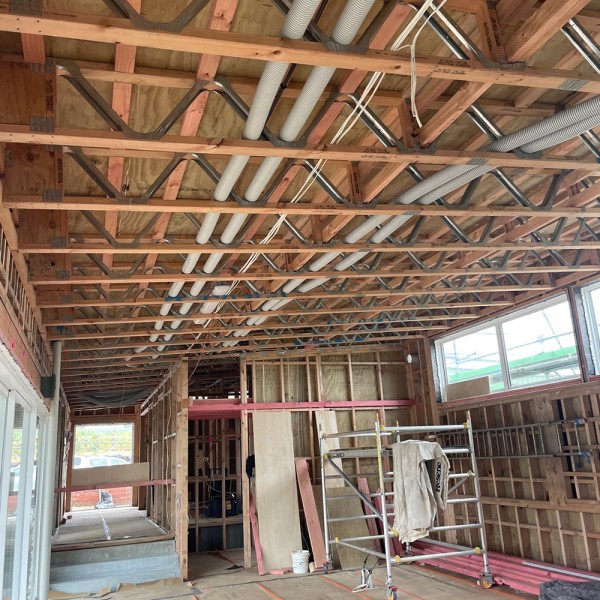

While possible to use in retrofits, Uniflexplus+ is best when installed during the build phase.
It is designed for use in apartments, townhouses, small buildings, and malls, and is particularly useful for ventilating buildings with restricted floor, wall, or ceiling spaces.

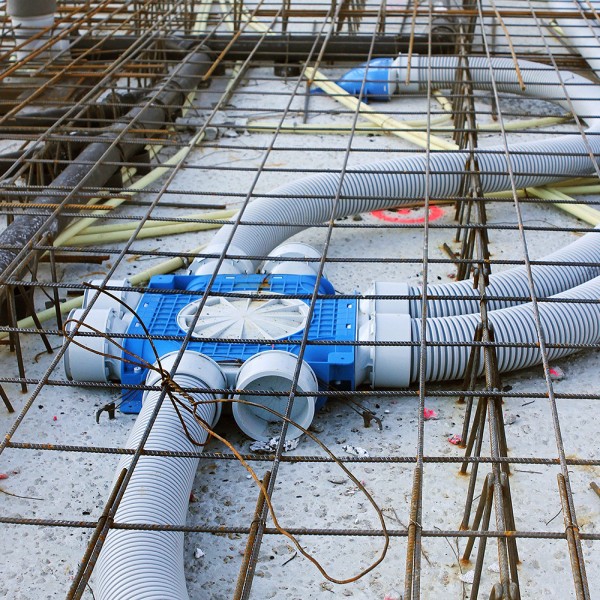

Uniflexplus+ is also safe to bury, and can be installed and set within concrete.
Looking for more?
View the full Uniflexplus+ range
For a comprehensive list of all the components within the Uniflexplus+ range including the ducting, distribution boxes, diffusers, and more specialised components, check out our brochure here.
Confused about what to pick?
All you need to do is send a description of your project and a copy of your house plans to our design team, and they can guide you on what parts you’ll need to achieve your desired outcome.
